Foot straps
Padded instep strap for securing feet to wheelchair foot plate with 24 mm ratchet and serrated band.
Special features
Delivery always in pairs!
In many buckles and toothed belt variants possible!
Article numbers
- PL-RR-XS: Length min.19 cm B14-GO-BL and R14-GO-110, Length max. 27 cm
- PL-RR-S: Length min. 20 cm B24-LU-JU and R24-BL-170, Length max. 27 cm
- PL-RR-M: Length min. 24 cm B24-LU-JU and R24-BL-195, Length max. 31 cm
- PL-RR-L: Length min. 24 cm B24-LU-JU and R24-BL-225, Length max. 36 cm
- PL-RR-XL: Length min. 29 cm B24-LU-JU and R24-BL-225, Length max. 51 cm
- PL-RR-GO-S: Length min.20 cm B19-GO-BL and R19-GO-BL-350, Length max. 27 cm
- PL-RR-GO-M: Length min. 24 cm B19-GO-BL and R19-GO-BL-350, Length max. 31 cm
Scope of application
Padded instep strap for securing feet to wheelchair foot plate with 24 mm ratchet and serrated band. Allows for quick release and securing with one hand.
Included
BS-BL-25-SET
Mounting Bracket Set with screws and nuts.
Always in pairs!

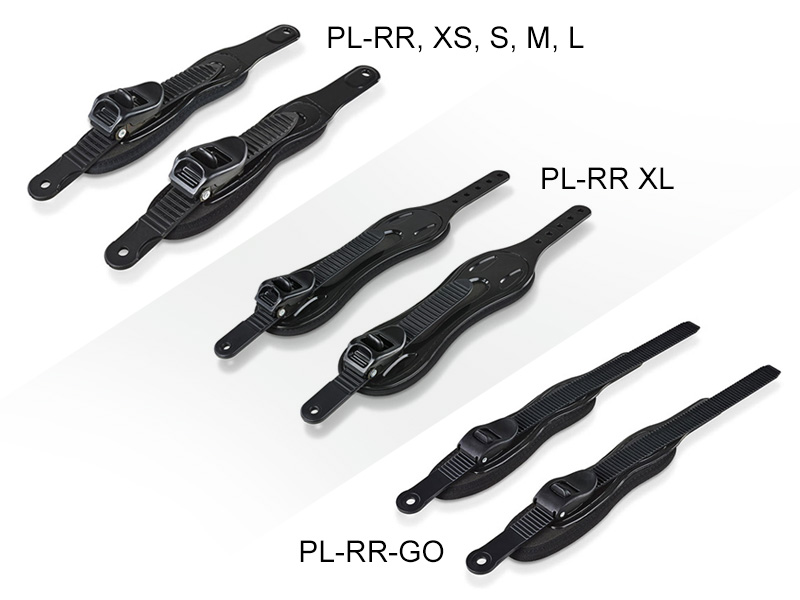

Version PL-RR
Upholstery size above everything:
- Size: XS-S 17,5 cm x 5,0 cm, overall length 21,0 cm
- Size: M 17,5 cm x 5 cm, overall length 23,5 cm
- Size: L 17,5 cm x 5 cm, overall length 23,5 cm, same cushion size wie Size M
Version PL-RR
Upholstery size above everything:
- Size: XL 24,0 cm x 7,0 cm, overall length 35,0 cm
Version PL-RR-GO
Upholstery size above everything:
- Size: S 20,0 cm, overall length 27,0 cm
- Size: M 24,0 cm, overall length 31,0 cm
Technical data
| PL-RR |
XS
|
S
|
M
|
L
|
XL
|
Product is latex free
|
 |
|
Padding size (cm)
|
17,5 x 5 |
17,5 x 5
|
25,5 x 8
|
25,5 x 8
|
24 x 7 | ||
|
Total length (cm) minimal
|
19 |
20
|
24
|
24
|
29 | ||
|
Total length (cm) maximal
|
27 |
27
|
31
|
36
|
51 | ||
|
Toothed strap
|
R-14-GO-110 |
R-24-BL-170
|
R-24-BL-195
|
R-24-BL-225
|
R-24-BL-225 | ||
|
Buckle
|
B-14-GO-BL |
B-24-LU-JU
|
B-24-LU-JU
|
B-24-LU-JU
|
B-24-LU-JU |
| PL-RR-GO |
S
|
M
|
Product is latex free
|
|
|||
|
Padding size (cm)
|
17,5 x 5
|
25,5 x 8
|
|||||
|
Total length (cm) minimal
|
20
|
24
|
|||||
|
Total length (cm) maximal
|
27
|
31
|
|||||
|
Toothed strap
|
R-19-GO-BL-350
|
R-19-GO-BL-350
|
|||||
|
Buckle
|
B-19-GO-BL
|
B-19-GO-BL
|
