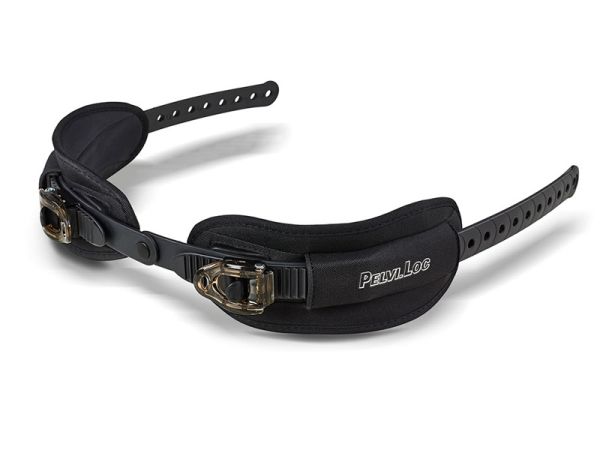

Version
Formed shape with ultra thin end at the moulded seat fixing point to avoid lateral pressure marks at the pelvis. On the moulded seat remain attached the ratchets. Remove the pads to implement.
Scope of application
For custom made seats, moulded seat.
Special features
The timing belts remain attached to the side of the seat pan. To transfer only remove the pads.
Fine adjustment of the pads to each other can be adjusted via the belt.
Article numbers
PL-3DSR-XXS for SW 12-20 cm
PL-3DSR-XS for SW 16-24 cm
PL-3DSR-S for SW 20-32 cm
PL-3DSR-M for SW 30-40 cm
PL-3DSR-L for SW 36-46 cm
PL-3DSR-XL for SW 44-52 cm
Technical Data
|
XXXS Bambino
|
XXS
|
XS
|
S
|
M
|
L
|
XL
|
|
|
Seat width (cm)
|
12 - 20 | 16 - 24 |
20 - 32
|
30 - 40
|
36 - 46
|
44 - 52 | |
|
Padding size (cm)
|
15 x 7 | 18 x 7 |
21 x 8
|
25,5 x 8
|
26,5 x 8,5
|
28,5 x 9 | |
|
Weight (g)
|
220 | 220 |
220
|
280
|
280
|
280 | |
|
Predetermined breaking point (at approx. kg)
|
60 | 60 |
60
|
80
|
80
|
80 |
| Ratchet size XXXS - XXS | 1,9 x 0,2 x 40,0 cm |
Product is latex-free
|
 |
| Ratchet size XS - S | 1,9 x 0,2 x 40,0 cm | ||
| Ratchet size M - L - XL | 2,4 x 0,2 x 40,0 cm | ||
| Buckle size XXXS | |||
| Buckle size XXS | B-19-ERGO-BL | ||
| Buckle size XS - S | B-19-ERGO-BL | ||
| Buckle size M – L – XL | B-24-ERGO-BL | ||
| Hole-strap XXS - XS - S | V-LR-19-BL-110 and V-LR-19-BL-140 | ||
| Hole-strap M - L - XL | V-LR-24-BL-110 and V-LR-24-BL-140 |
