Version

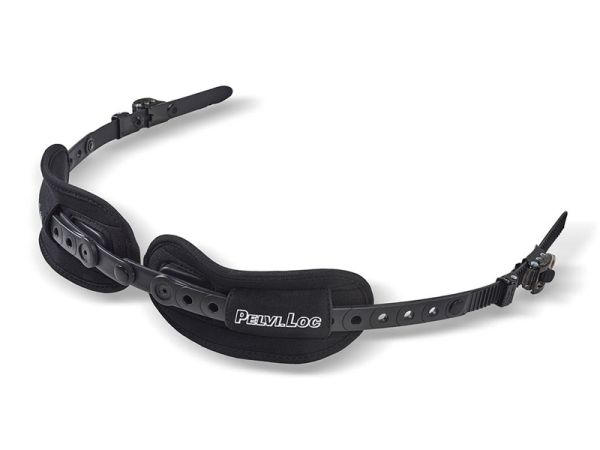

Pelvis-retraction-belt with reversed ratchet
Formed shape with ultra thin end at the moulded seat fixing point to avoid lateral pressure marks at the pelvis.
The 3D formed shape is bolted firmly to the timing belt and strap hole.
Buckle belt R-19/24-BL-400 and pressure-buckle B-19/24-Star are included.
Scope of application
For cutom made seats and moulded seat.
Special features
The buckles are mounted on the side of the moulded seat or buggy. The pelvis-retraction-belt with the ratchet slides sideways into the buckles.
To improve positioning of the belt, adjustments can be made via the hole-strap.
Article numbers
PL-3DSRR-XS for width 16-24 cm
PL-3DSRR-S for width 20-32 cm
PL-3DSRR-M for width 30-40 cm
PL-3DSRR-L for width 36-46 cm
Amendment
Hole-strap - set, available in a set of two
- Width: 19/24 mm
- Lenght: 115 mm
Hole-strap with buckle and clamping clip for mounting onto the frame. Also available in different sizes and diameters.
Example:
- Hole – strap 24 mm wide x 115 mm long and B-24-ERGO and clamping clip RS-25
Article numbers
LR-R-19-BL/B-19-ERGO-TR
LR-R-24-BL/B-24-ERGO-TR
Technical Data
|
XXXS Bambino
|
XXS
|
XS
|
S
|
M
|
L
|
XL
|
|
|
Seat width (cm)
|
16 - 24 |
20 - 32
|
30 - 40
|
36 - 46
|
|||
|
Padding size (cm)
|
18 x 7 |
21 x 8
|
25,5 x 8
|
26,5 x 8,5
|
|||
|
Weight (g)
|
220 |
220
|
280
|
280
|
|||
|
Predetermined breaking point (at approx. kg)
|
60 |
60
|
80
|
80
|
| Ratchet size XXXS - XXS |
Product is latex-free
|
 |
|
| Ratchet size XS - S | 1,9 x 0,2 x 40,0 cm | ||
| Ratchet size M - L - XL | 2,4 x 0,2 x 40,0 cm | ||
| Buckle size XXXS | |||
| Buckle size XXS | |||
| Buckle size XS - S | B-19-STAR-BL | ||
| Buckle size M - L - XL | B-24-STAR-BL | ||
| Hole-strap |
