Version

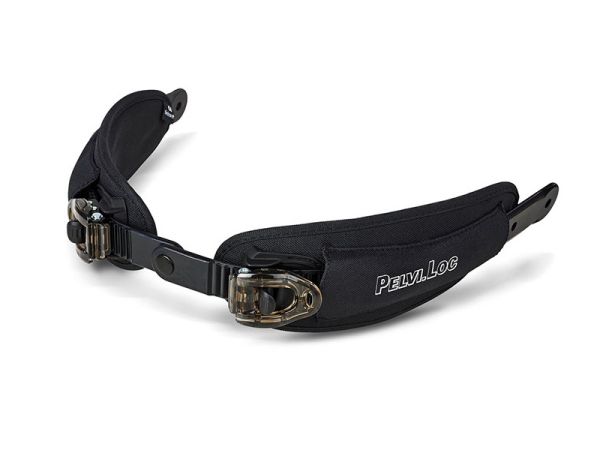

2DB belt suitable for thigh. The buckles are easily accessible
The ratchet will run in addition to a strap to prevent injuries. Hole strap on frame adjustable up to 6 cm. For fixing on to the frame use compatible clamping clips.
Performance
Cross country skis with:
- PL-3DSRR-M 3D moulded seat Reverso with twisted toothed belt and belt set
- PL-2DB-XS Thigh Belt Front
Scope of application
- For pelvis positioning in a wheelchair and sports wheelchair
Article numbers
PL-2DB-XXS for SW 12-20 cm
PL-2DB-XS for SW 16-24 cm
PL-2DB-S for SW 20-32 cm
PL-2DB-M for SW SB 30-40 cm
PL-2DB-L for SW SB 36-46 cm
PL-2DB-XL for SW 44-52 cm
Amendment
Tube clamps for attaching the belt to the wheelchair frame available in the following diameters:
Article numbers
RS-20: Tube diameter 20 mm
RS-22: Tube diameter 22 mm
RS-25: Tube diameter 25 mm
RS-30: Tube diameter 30 mm
RS-32: Tube diameter 32 mm
Technical Data
|
XXXS
|
XXS
|
XS
|
S
|
M
|
L
|
XL
|
|
|
Seat width (cm)
|
12 - 20
|
16 - 24
|
20 - 32
|
30 - 40
|
36 - 46
|
44 - 52
|
|
|
Padding size (cm)
|
12 x 7
|
17 x 7
|
20 x 7
|
22 x 8
|
25,5 x 8
|
28,5 x 9
|
|
|
Weight (g)
|
200
|
220
|
220
|
280
|
280
|
280
|
|
|
Predetermined breaking point (at approx. kg)
|
40
|
60
|
60
|
80
|
80
|
8
|
| Ratchet size XXXS - XXS | 1,4 x 0,2 x 14,0 cm |
Product is latex-free
|
 |
| Ratchet size XS - S | 1,9 x 0,2 x 17,0 cm | ||
| Ratchet size M - L - XL | 2,4 x 0,2 x 17,0 cm | ||
| Buckle size XXXS | B-14-STAR-BL | ||
| Buckle size XXS | B-14-GO-BL | ||
| Buckle size XS - S | B-19-ERGO-BL | ||
| Buckle size M – L – XL | B-24-ERGO-BL |
